StingRay5 Classic Hero Image
StingRay5 Classic Logo

Als je je een 5-snarige bas voorgesteld in de jaren 1970 zou voorstellen, zou de foto veel op de Classic Stingray 5 lijken. De Classic Stingray 5 is een eerbetoon aan de originele basontwerpen van Music Man van het midden tot het einde van de jaren 1970, met toegevoegde moderne verfijningen. String-through body bridge, mute kit, kleine profiel nikkel frets en een gebogen 7,5 "radius neck zijn belangrijke specificaties die teruggrijpen naar de vroege dagen van de productie van Music Man. Een moderne zes bolt nek bevestiging en een gemakkelijk toegankelijk truss rod verstelwiel zorgen voor solide constructie zonder gedoe, de toon van de klassieker blijft trouw aan het origineel met een ash body, 2 bands EQ en een standaard Music Man Alnico pickup.

StingRay5 Classic Logo

CUSTOM OPTIES

Black

Vintage Sunburst

Uw Custom Opties:

Model:
Kleur:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

StingRay5 Classic Highlights

StingRay5 Classic Slide
StingRay5 Classic Slide
StingRay5 Classic Slide
StingRay5 Classic Slide
StingRay5 Classic Slide
StingRay5 Classic Slide
StingRay5 Classic Highlight
Classic through body bridge with Mute Kit
StingRay5 Classic Highlight
Glossy Figured Maple Neck
StingRay5 Classic Highlight
2 Band eq active preamp

Specificaties, Schema & Meer

Specificaties Classic StingRay 5
Model Classic StingRay 5
Grootte 13-1/2" wide, 1-5/8" thick, 45-1/2" long (34.3 cm wide, 4.1 cm thick, 115.6 cm long)
Body Hout Select Hardwood
Body Afwerking High gloss polyester
Body Kleur Standard Classic Colors
Bridge Music Man® chrome plated, hardened steel bridge plate with "Classic" stainless steel saddles and adjustable mute pads
Pickguard Standard - Black or White; Optional - Shell
Scale Length 34" (86.4 cm)
Neck Radius 7.5" (19.1 cm)
Headstock Size Only 9" (22.9 cm) long
Frets 21 - High profile, narrow width
Neck Width 1-3/4" (44.5 mm) at nut 2-11/16" (68.3 mm) at last fret
Neck Hout Figured maple
Fingerboard Fretted - maple or rosewood
Neck Afwerking High-gloss finish
Neck Kleuren Natural aged yellow finish
Tuning Machines Schaller BM, with tapered string posts
Truss Rod Adjustable - no component or string removal
Neck Attachment 6 bolt neck plate

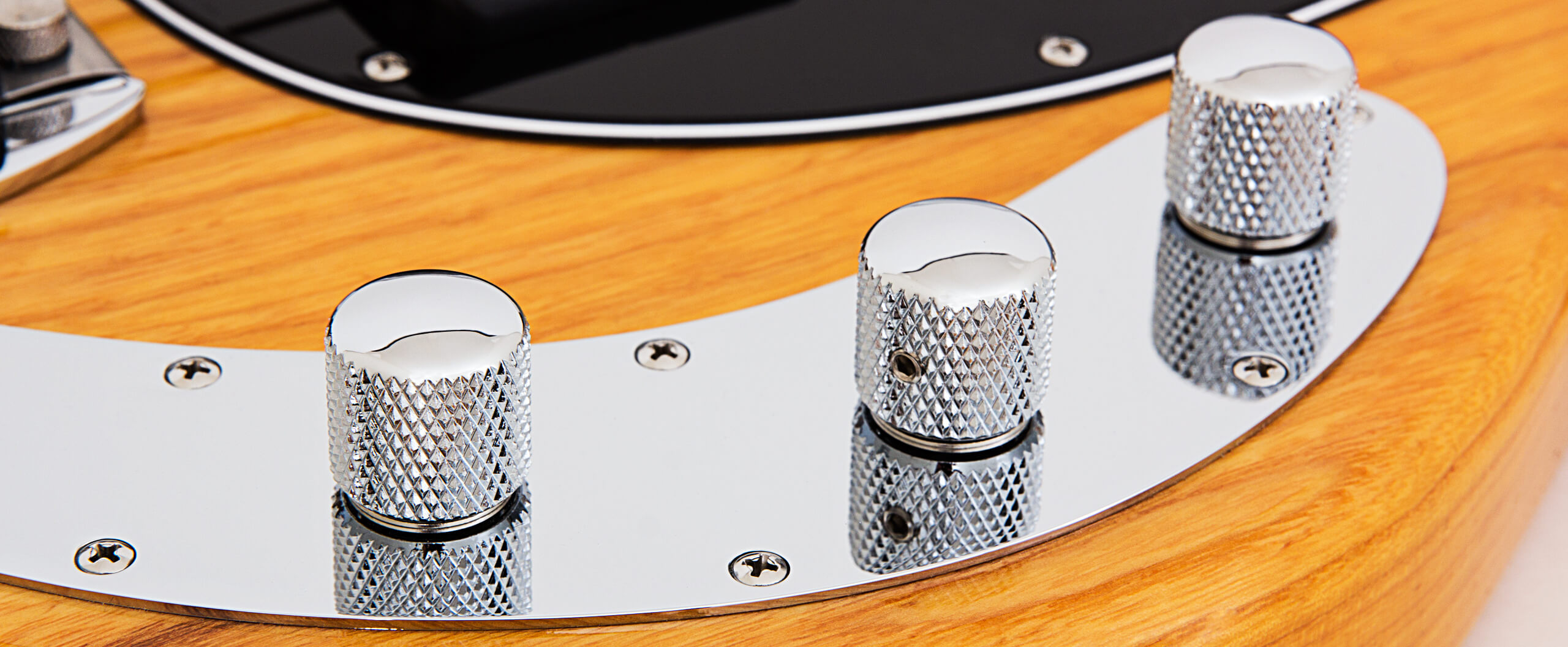

Electronic Shielding Chrome plated brass control cover
Controls Single Pickup, 2-band active preamp; vol, treble, bass
Pickups Standard - Music Man® humbucking with Alnico magnets
Left Handed No
Snaren 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)

id => 51

iid => 51

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:48

updated_at => 2015-11-06 08:20:48

Specificaties Classic StingRay 5
Model Classic StingRay 5
Order 0
Size 13-1/2" wide, 1-5/8" thick, 45-1/2" long (34.3 cm wide, 4.1 cm thick, 115.6 cm long)
Body Wood Select Hardwood
Body Finish High gloss polyester
Body Colors Standard Classic Colors
Body Bindings
Bridge Music Man® chrome plated, hardened steel bridge plate with "Classic" stainless steel saddles and adjustable mute pads
Pickguard Standard - Black or White; Optional - Shell
Scale Length 34" (86.4 cm)
Neck Radius 7.5" (19.1 cm)
Headstock Size Only 9" (22.9 cm) long
Frets 21 - High profile, narrow width
Neck Width 1-3/4" (44.5 mm) at nut 2-11/16" (68.3 mm) at last fret
Neck Wood Figured maple
Fingerboard Fretted - maple or rosewood
Fret Markers
Neck Finish High-gloss finish
Neck Colors Natural aged yellow finish
Neck Binding
Tuning Machines Schaller BM, with tapered string posts
Truss Rod Adjustable - no component or string removal
Neck Attachment 6 bolt neck plate
Electronic Shielding Chrome plated brass control cover
Controls Single Pickup, 2-band active preamp; vol, treble, bass
Switching
Pickups Standard - Music Man® humbucking with Alnico magnets
Left Handed No
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)
